Product Summary

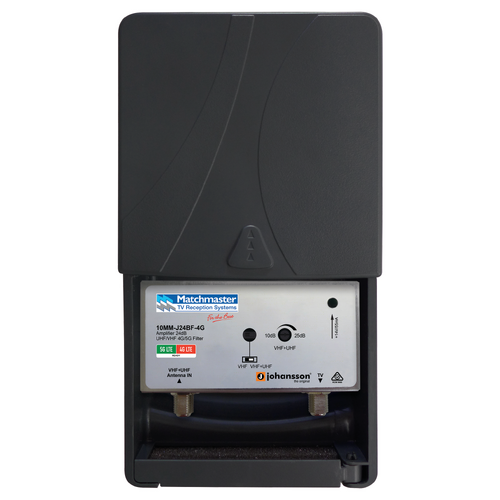

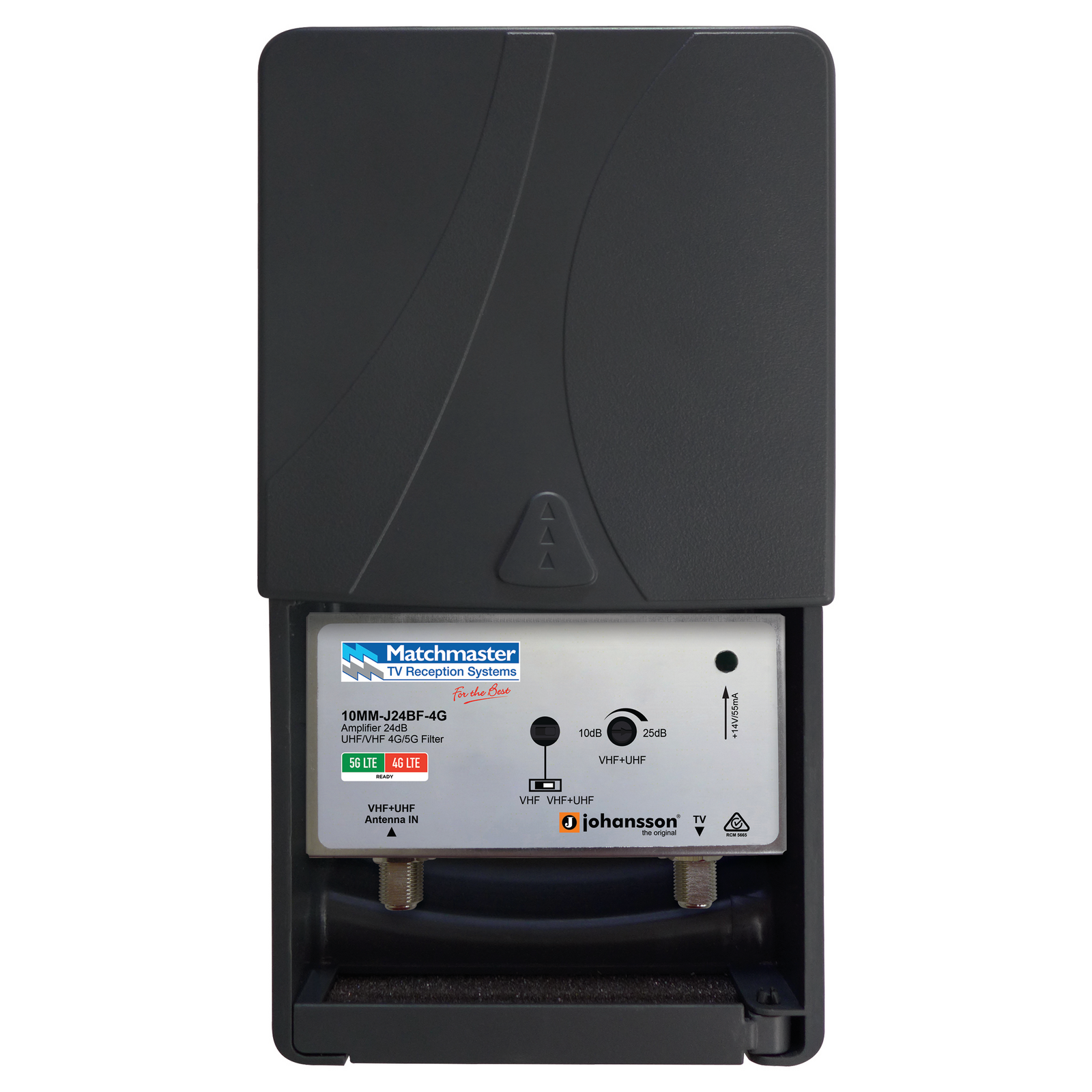

The 10MM-J24BF-4G is a Johansson professional low noise 24dB gain VHF/UHF masthead amplifier. The J24BF-4G features a built-in 4G/5G LTE low pass filter to help eliminate unwanted frequencies to maximise your viewing experience. The J24BF-4G is a fully screened low noise amplifier with 15dB of gain adjustment, allowing you to achieve optimal signal level. The J24BF-4G also features a VHF input switch to convert between combined VHF/UHF or VHF only antennas.


Features and Benefits

  • 24dB gain combination low noise amplifier with 15dB gain adjustment in a fully screened housing to maximise signal quality
  • Built-in 4G/5G LTE 694MHz low pass filter
  • VHF only or combined VHF/UHF input selection (selectable)

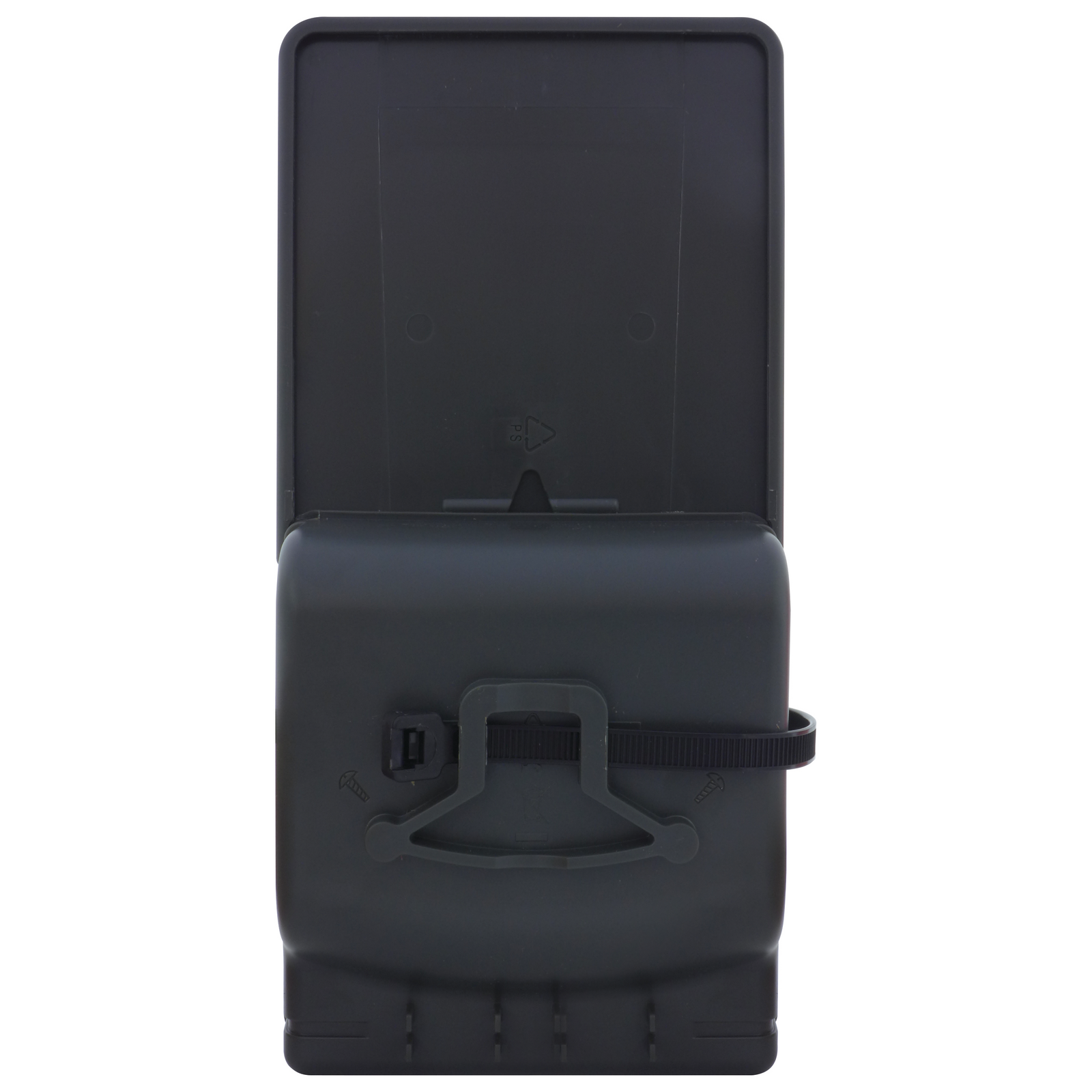

  • U/V stabilised weatherproof housing and cable tie
  • Wide range DC voltage operation, 5-24V DC


Pack Quantity

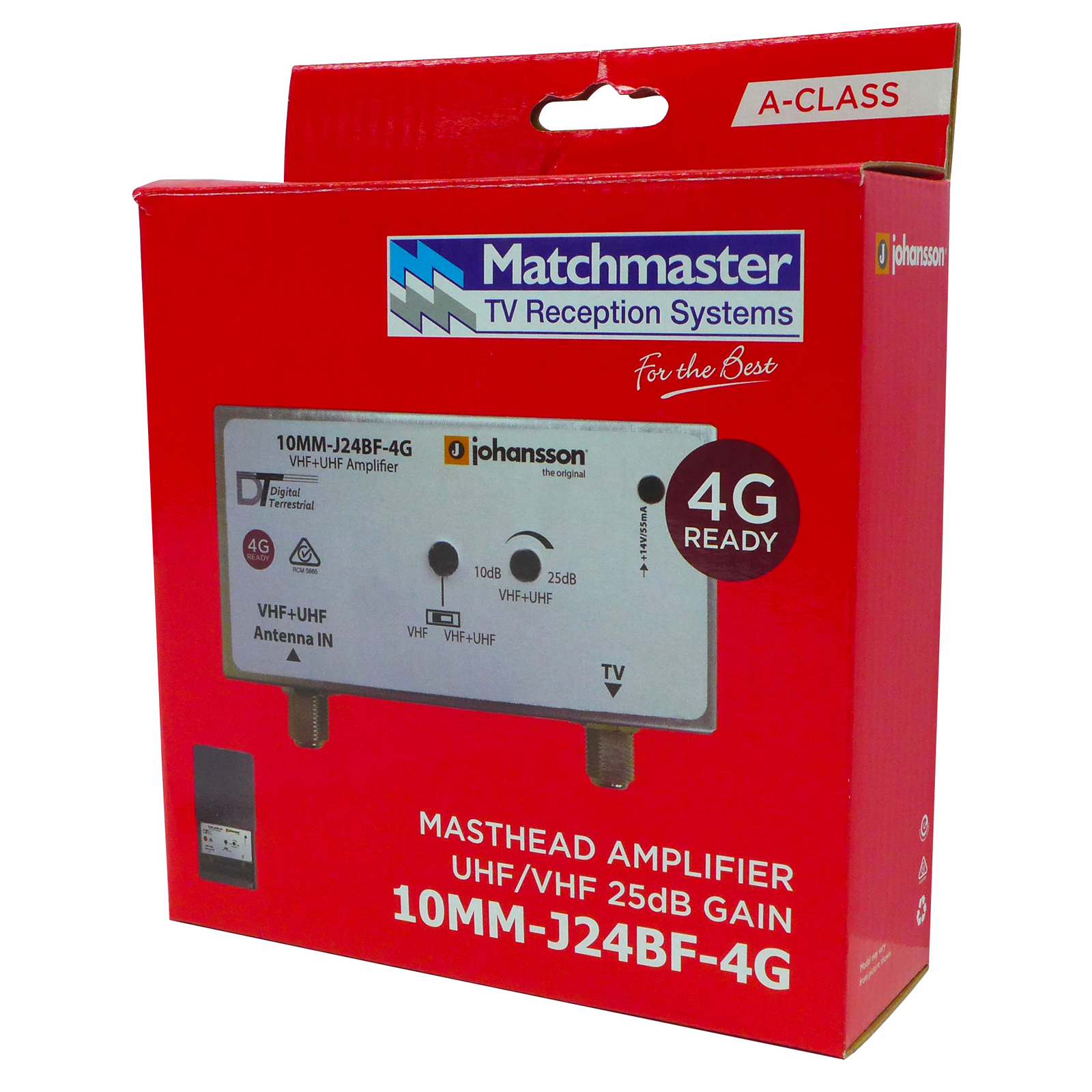

Inner: 1 hang sell box of 1 piece
Outer: 1 carton of 25 hang sell boxes (25 pieces)



Specifications

Band VHF UHF
Frequency Range: 174-230MHz 520-694MHz
Gain Maximum: 24dB
Gain Control: 14dB
Input Voltage: 14VDC
Noise Figure: 3.5dB
Input Maximum: 35dBµV
Output Maximum: 105dBµV
SKU MM-10MM-J24BF-4G_1
Brand Matchmaster
Unit Of Measure ea
